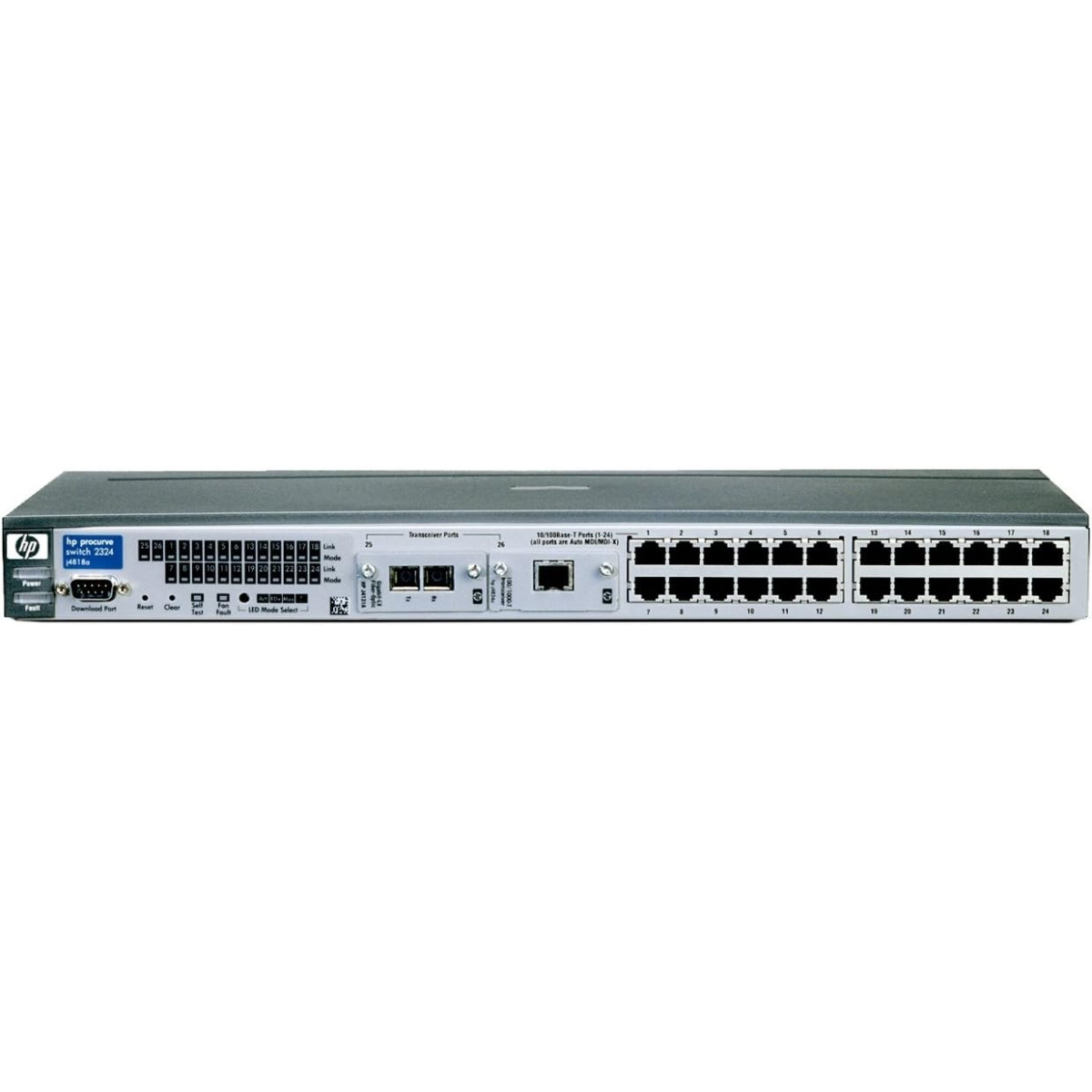

HP Procurve Switch 2324 J4818A / 24ports 10/100 RJ45

HP Procurve Switch 2324 J4818A / 24ports 10/100 RJ45

  • Κατασκευαστής: Hewlett-Packard
  • Κωδικός: HP Procurve Switch 2324
  • EAN:
  • Διαθεσιμότητα: 1
  • 145.80€



HP Procurve Switch 2324 J4818A  Low-cost, unmanaged 24- and 12-port switches with 10/100 autosensing per port and 2 open transceiver slots for media flexibility. The HP Procurve switch 2324 is ideal for low-cost, unmanaged 10/100 connectivity with uplinks.


General Information
Manufacturer Hewlett Packard
Manufacturer Part Number J4818A#ABA
Product Line ProCurve
Product Name ProCurve 2324 Ethernet Switch
Marketing Information - Unmanaged 9.6 Gbps switch fabric integrated on-chip
- Lifetime warranty: for as long as you own the product, with next business day advance replacement (available in most countries)
Manufacturer Website Address www.hp.com
Networking
Device Type Ethernet Switch
Ports 24 x 10/100Base-TX LAN
Ports Details
  • 1 x DB-9 Serial Port(s) Management
  • 24 x RJ-45 10/100Base-TX Port(s) Auto MDI/MDI-X LAN
Expansion Slots 2 x Expansion Slot(s)
Slots Details 2 x Expansion Slot(s)
Media & Performance
Connectivity Media Twisted Pair 10/100Base-TX
Data Transfer Rate
  • 10Mbps Ethernet
  • 100Mbps Fast Ethernet
Performance
  • 9.6Gbps Switching Fabric
  • 6.6Mpps Throughput for 64-byte Packet(s)
Protocols & Management
Management - Unmanaged: provides plug-and-play simplicity

Processor & Storage
Processor 1 x ARM7TDMI 62.5MHz
Memory
  • 26MB Main Memory
  • 2MB Flash Memory
Address Table 4K MAC Addresses
Miscellaneous
Additional Information - Latency: < 10 ?s (LIFO)
Certifications & Standards - IEEE 802.3-LAN
- IEEE 802.3U-LAN

Safety:
- EN 60950/IEC 950
- UL 1950: CSA 950
- Complies with NOM-019-SCFI-1994

Emissions:
- FCC Class A
- EN 55022/CISPR-22 Class A
- VCCI Class A

Immunity
- EN 55024/CISPR 24
- ESD: IEC 61000-4-2; 4kV CD, 8kV AD
- Radiated: IEC 61000-4-3; 3V/m
- EFT/Burst: IEC 61000-4-4; 1.0kV (power line), 0.5kV (signal line)
- Surge: IEC 61000-4-5; 1kV/2kV AC, 1kV signal, 0.5kV signal line
- Conducted: IEC 61000-4-6; 3V
- Power freq. magnetic field: IEC: 61000-4-8; 1A/m, 50 or 60 Hz
- Voltage dips or interruptions: IEC 61000-4-11; > 95% reduction: 0.5 periods, 30% reduction: 25 periods
- EN 61000-3-2/IEC 61000-3-2; harmonics
- EN 61000-3-3/IEC 61000-3-3; flicker
Power Description
Input Voltage
  • 100 to 127V AC
  • 200 to 240V AC
Input Current 1.2 or 2.4A
Frequency 50 to 60Hz
Environmental Conditions
Temperature
  • 32 to 131?F (0 to 55?C) Operating
  • -40 to 158?F (-40 to 70?C) Storage
Humidity 15 to 95% Operating
Thermal Dissipation 123 BTU/h
Physical Characteristics
Body Color White
Form Factor Rack-mountable
Dimensions 1.8" Height x 17.4" Width x 8.0" Depth
Shipping Dimensions 6.5" Height x 11.75" Width x 23.00" Depth
Weight 6.0 lb
Shipping Weight 9.10 lb
